Section 1 / Registers (Simplified)

Overview

There are four highest level ideas relating to floating point operations on AARCH64.

• There is another complete register set for floating point values.

• There are alternative instructions just for floating point values.

• There are exotic instructions that operate on sets of floating point values (SIMD).

• There are instructions to go back and forth to and from the integer registers.

Floating Point Registers

There will be a more detailed discussion of the floating point registers when exotic instructions such as SIMD are discussed. For now, it is sufficient to discuss the less exotic aliases of the floating point registers.

We say aliases because, like the integer registers, how you reference a floating point register determines how it is interpreted.

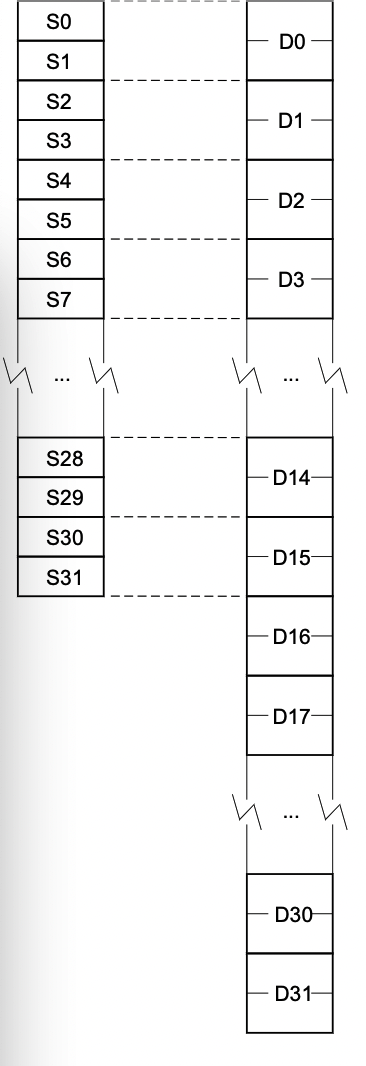

For example, in the following image, note the overlap of two single precision floats within a single double precision floating point register.

It is worth noting early and often that you should not mix dealing with different precisions assuming that because of the overlaps in space, you'll get a meaningful result.

The above image does not show the corresponding layout of half precision floating point registers. H0 sits in the least significant bits of S0 and so on.
